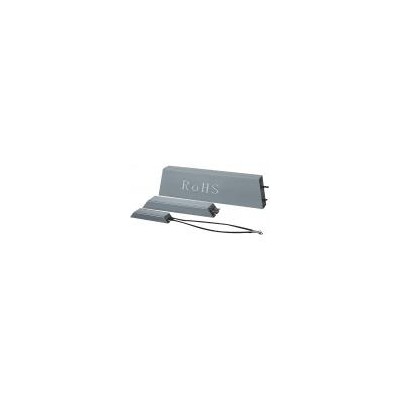

产品特点：
额定功率范围: 50W-2500W
工作电压范围: 0.5KV-10KV
额定阻值范围: 1R-1KR
耐压范围: AC3KV 50Hz/1min
IP等级: IP00
载流体材料: 0Cr25AL5
优势: 高电压工作
劣势: 抗震性较差
产品尺寸
额定功率 | 尺码（mm） | 重量(kg) | 阻值 | ||||||||||
（w） | L1 | L2 | L3 | D | B | B1 | H | H1 | N | d | O | （Ω） | |
| (±2) | (±5) | (±3) | (±2) | (±3) |
| |||||||
50 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 62 | 9.5 | 4.5 | 1.2 | 0.15 | 1Ω-10kΩ |
60 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 62 | 9.5 | 4.5 | 1.2 | 0.2 | 1Ω-10kΩ |
80 | 152 | 174 | 196 | 28 | 6.5 | 28 | 28 | 62 | 9.5 | 4.5 | 1.2 | 0.24 | 1Ω-10kΩ |
100 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 62 | 9.5 | 4.5 | 1.2 | 0.24 | 1Ω-10kΩ |
120 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 62 | 9.5 | 4.5 | 1.2 | 0.24 | 1Ω-10kΩ |
150 | 197 | 219 | 241 | 40 | 8 | 40 | 41 | 86 | 12 | 5.5 | 2 | 0.43 | 1Ω-10kΩ |
200 | 197 | 219 | 241 | 40 | 8 | 40 | 41 | 86 | 12 | 5.5 | 2 | 0.43 | 1Ω-10kΩ |
300 | 284 | 306 | 328 | 40 | 8 | 40 | 41 | 86 | 12 | 5.5 | 2 | 0.62 | 1Ω-10kΩ |
400 | 284 | 306 | 328 | 40 | 8 | 40 | 41 | 86 | 12 | 5.5 | 2 | 0.62 | 1Ω-10kΩ |
500 | 318 | 340 | 362 | 50 | 8 | 50 | 45 | 99 | 16 | 6.5 | 2 | 0.7 | 1Ω-10kΩ |
600 | 347 | 369 | 391 | 40 | 8 | 40 | 41 | 86 | 12 | 5.5 | 2 | 0.96 | 1Ω-10kΩ |
750 | 318 | 340 | 362 | 50 | 8 | 50 | 45 | 99 | 16 | 6.5 | 2 | 0.96 | 1Ω-10kΩ |
1000 | 302 | 327 | 325 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6.5 | 2 | 1.4 | 5Ω-10kΩ |
1200 | 417 | 442 | 467 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6.5 | 2 | 1.4 | 5Ω-10kΩ |
1500 | 417 | 442 | 467 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6.5 | 2 | 1.72 | 5Ω-10kΩ |
2000 | 512 | 537 | 562 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6.5 | 2 | 2.02 | 5Ω-10kΩ |
2500 | 602 | 627 | 652 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6.5 | 2 | 2.45 | 5Ω-10kΩ |
