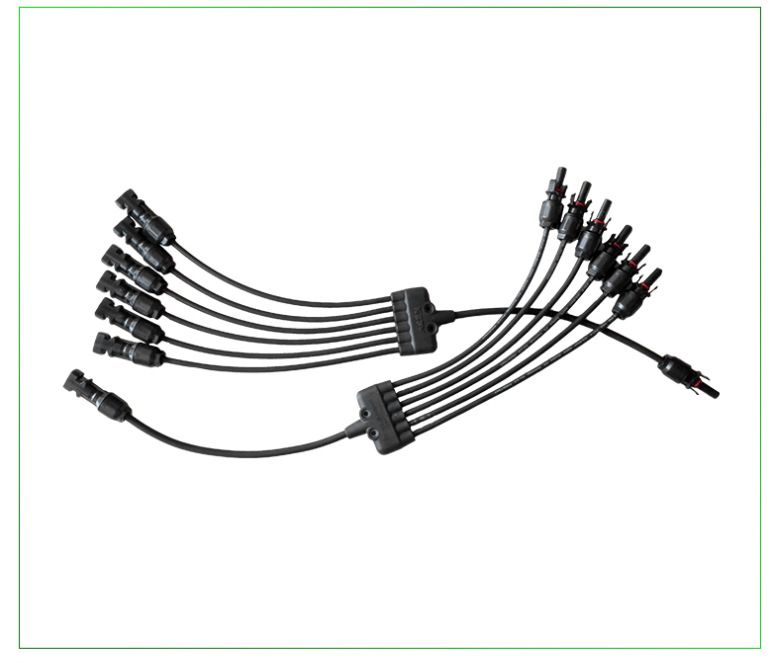

[新品] 光伏单芯连接器 能快速更换接头太阳能电缆6线汇并1线7通转接器(6

价格：电议

料号：Part number:图示：Drawing:原理图schematic diagramM210Y***-**+310T***-**过压等级Overvoltage category/Pollution degreeCATIII/2额定脉冲电压Rated Impulse voltage16kV符合标准Regulatory approvalTUV/CE(IEC62852:2014)金属导体材料Contact material铜,镀锡Copper,Tin plated连接方式Connecting system压接Crimp connection保护等级Degree of protectionIP68(1m,1H)温度上限 Upperlimiting temperature110℃(IEC)测试电压Test voltage8kV(50Hz,1min)环境温度范围Ambient temperature range-40℃…+85℃(IEC）连接器接触电阻contact resistance≤ 0.25 mΩ适配电线规格Suitable cable cross sections1.5~10mm2 /16~8AWG额定电压Rated voltage1500VDC阻燃等级Flame classUL94-V0额定脉冲电压Rated Impulse voltage12KV安装方式Installation type户外，抗紫外线(F1)Outdoor,UV resistant(F1)1500VDC光伏线束1500VDC Solar Cable Assembly产品规格Product Specifications绝缘材料Insulation materialPPE/TPE/PA安全等级Safety degreeIIT100T***-**H210Y***-**M310Y***-**M420H***-**M310H***-**M410H***-** 4mm26mm210mm216mm21.5mm22.5mm24mm26mm210mm214AWG12AWG10AWG8AWG6AWG16AWG14AWG12AWG10AWG8AWGM510H***-**M610H***-**适配电线尺寸Suitable for cable size:主线Main wire size分支线Branch wire size
