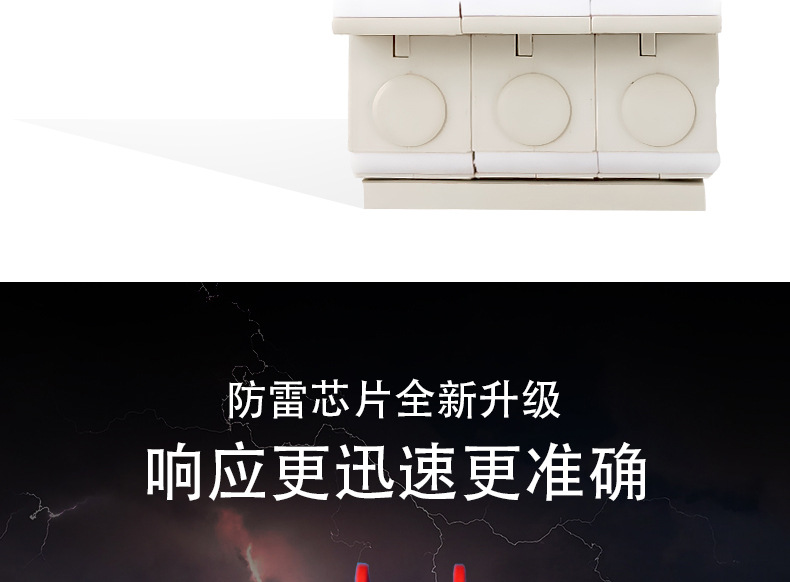

[新品] 新金阳厂家直销光伏防浪涌 防雷击浪涌保护器(NSPV3-40R)

价格:未填

发送询价

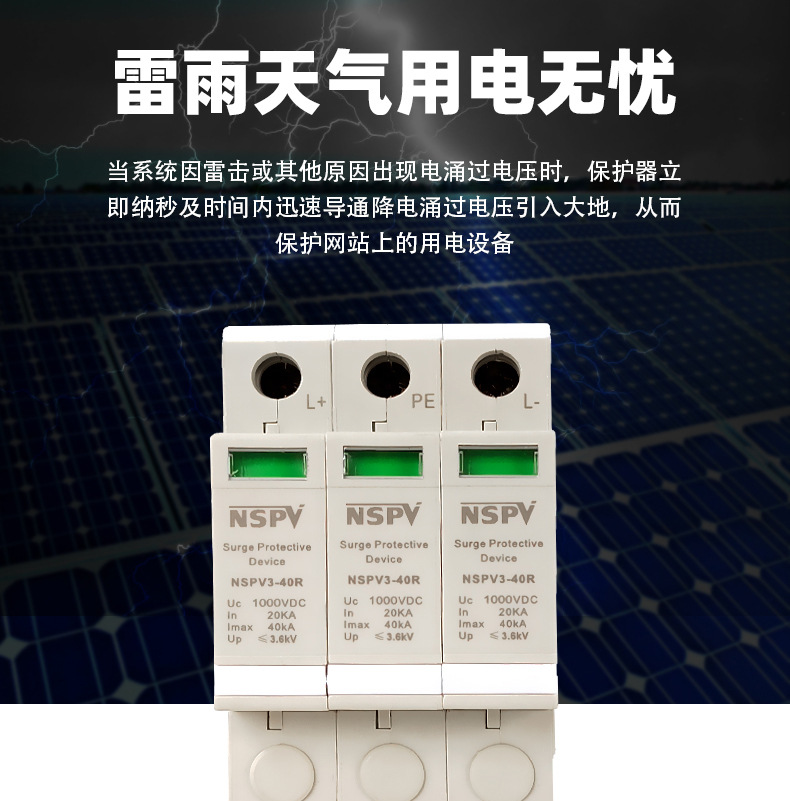

当系统因雷击或其他原因出现电涌过电压时，保护器立即纳秒及时间内迅速导通降电涌过电压引入大地，从而保护网站上的用电设备。

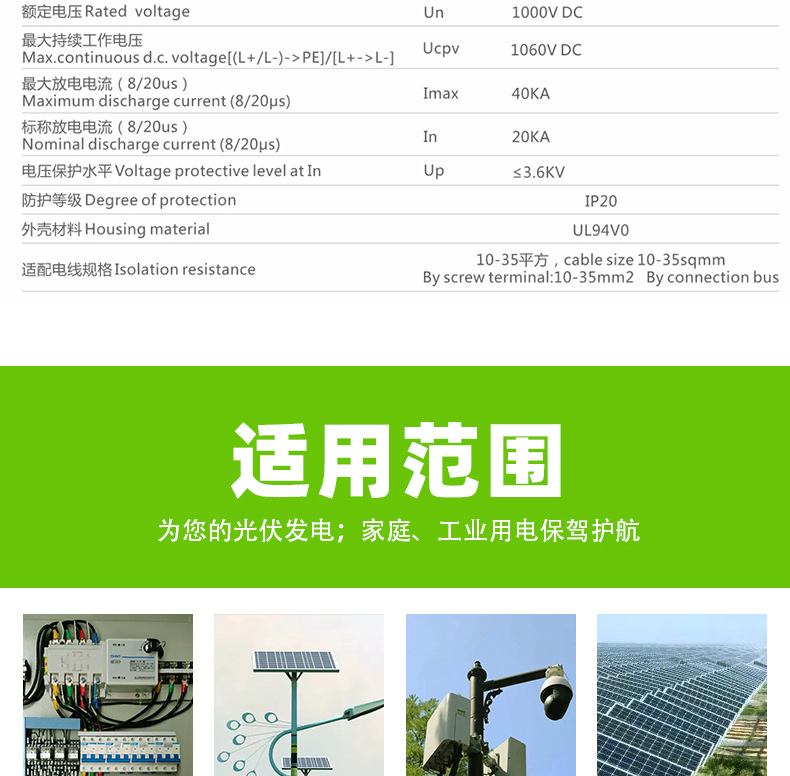

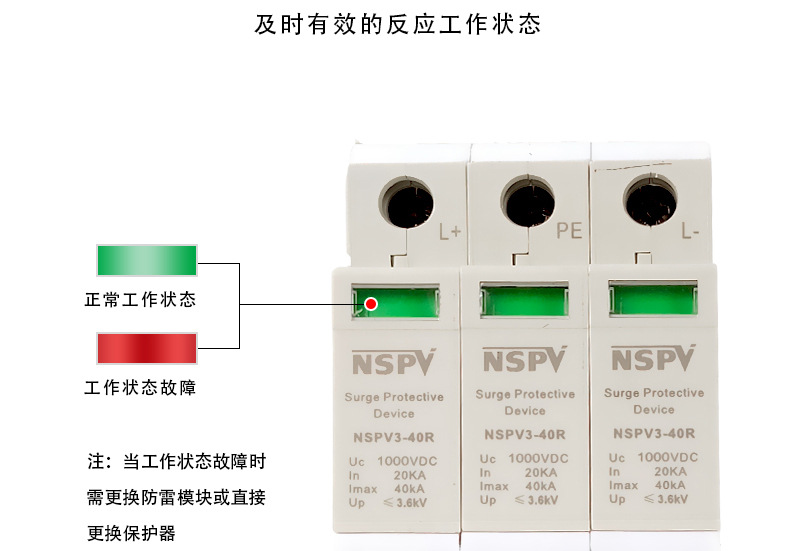

Model No. Product Name Data Version 1.Basic Structure Drawing 2. Principle Drawing NSPV3-40L DC3P 40L 2018.1.4 A1 Ucpv 3. Technical parameters SPD classification according to EN61643-11 Type2 SPD classification according to EN50539-11 Max continuous operating dc voltage 600V ClassII Ucpv In Imax Up Ta Tu Maximum discharge current (8/20μs) 20kA Nominal discharge current (8/20μs) 40kA Max.continuous operating dc voltage 600V Operating state/fault indication green/red Voltage protective level at [(DC+/DC-)→PE] ≤2.6kV Response time ≤25ns Operating temperature range-40℃-80℃ Operating state/fault indication green/red Cross-section area (Max.) 35mm2 Cross-section area (Min.) 4mm2 For mounting on 35mm Din rail Enclosure material Thermalplastic UL94-V0 Degree of protection IP20 Order Code B8009 Orde code (With remote signal) B8011
