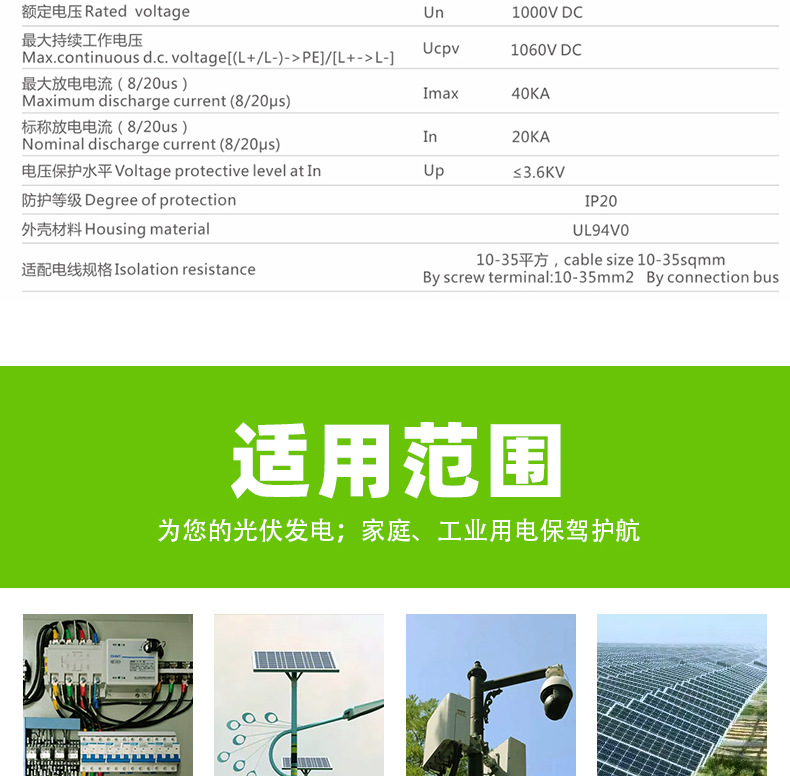

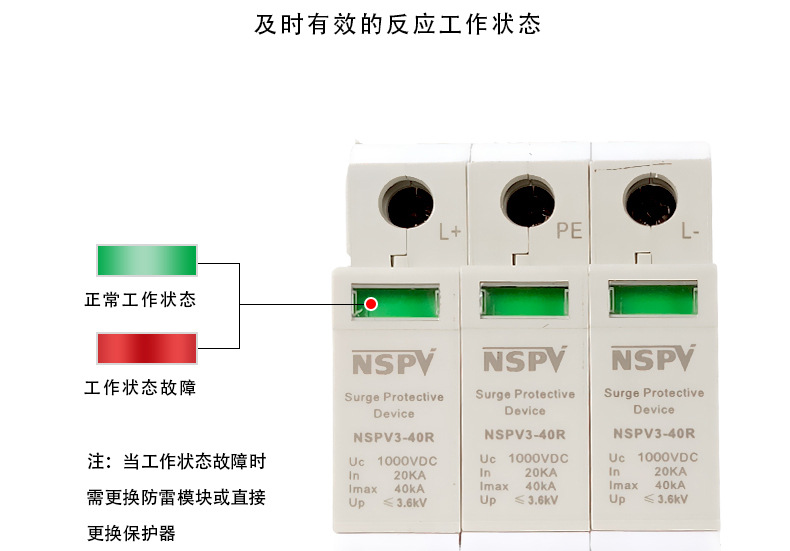

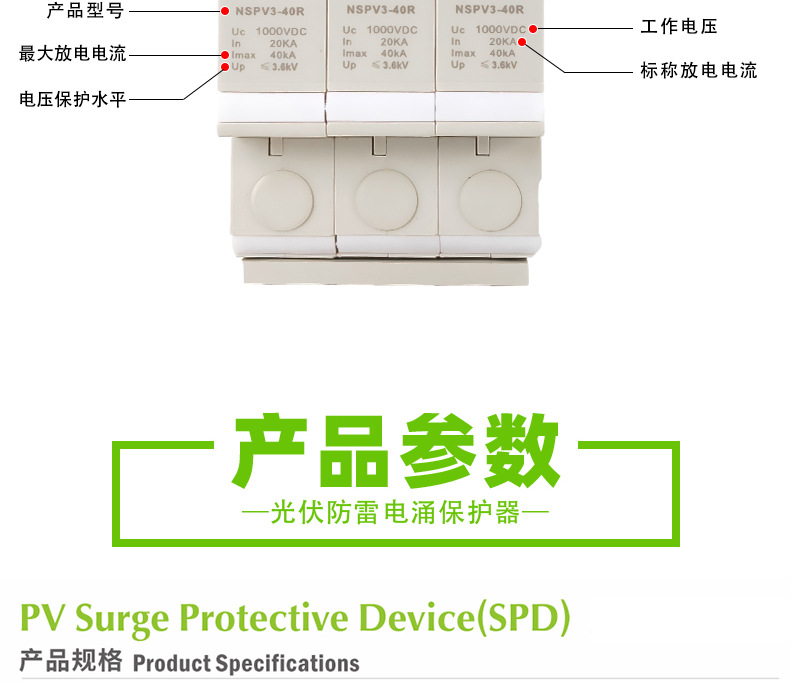

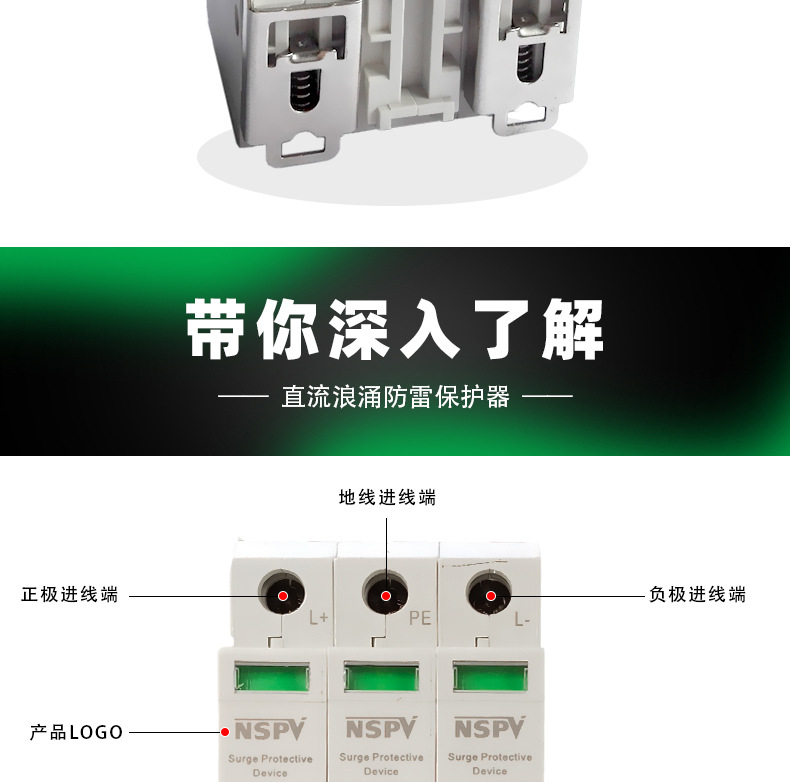

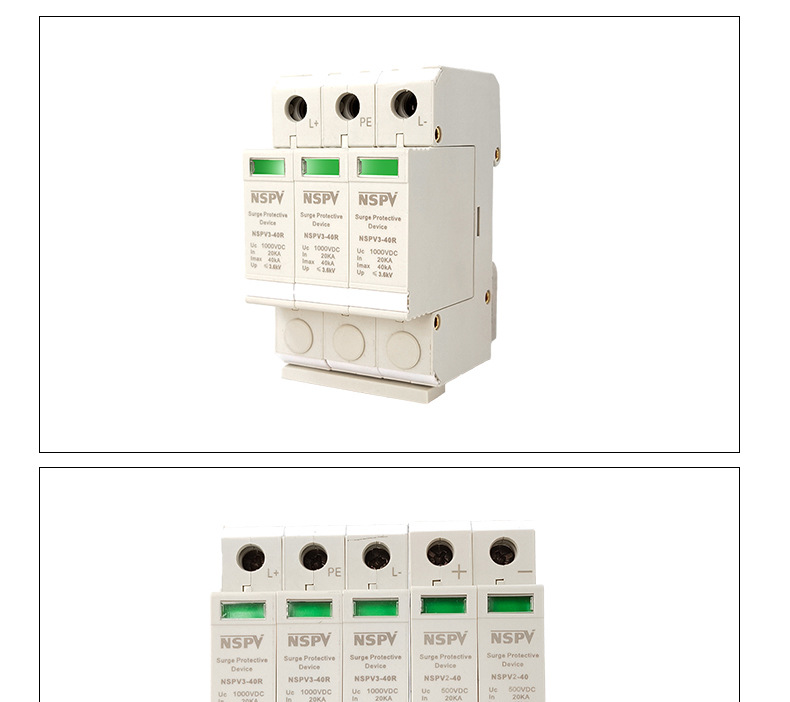

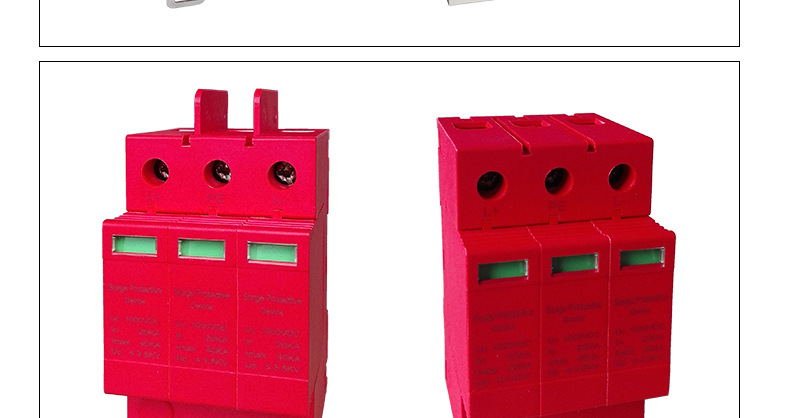

Model No. Product Name Data Version 1.Basic Structure Drawing 2. Principle Drawing Un Ucpv Nominal voltage 1000V DC Max.continuous d.c. voltage 1060V DC 3. Technical parameters Test class according to IEC61643-1:2005 II Ucpv Imax In Up Ta ≤25ns Maximum discharge current (8/20μs) 40kA Nominal discharge current (8/20μs) 20kA Voltage protective level at In ≤4kV Max.continuous d.c. voltage [(L+/L-)->PE]/[L+->L-] 1060V DC I/O Connections By screw terminal:10-35mm2 By connection bus Response time Remote control contact Without Degree of protection IP20 Housing material UL94V0 Disconnection indicator Mechanical indicator By connection bus Mounting Symmetrical rail (EN50022/DIN46277-3) Operation temperature range -40℃~+85℃ Color Green/RedB8012 Order code (With remote signal)
